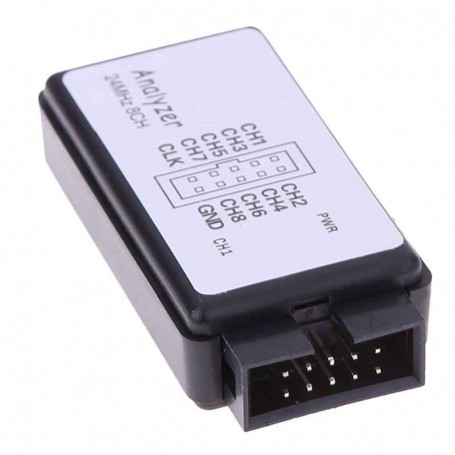

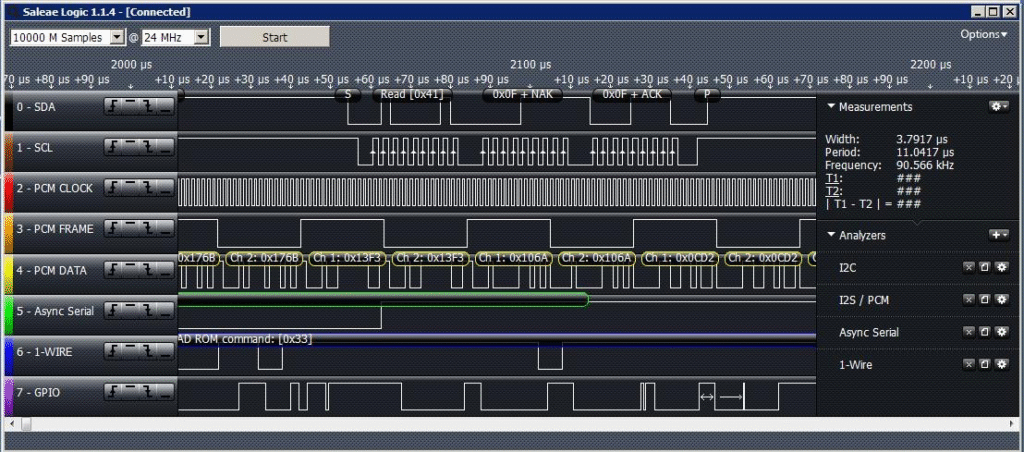

لاجیک آنالایزر 8 کاناله USB 24MHZ این دستگاه جهت مشاهده سیگنالهایی شبیه spi,twi,uart,one wire و… استفاده می شود و ارتباط آن از طریق USB می باشد. این لاجیک آنالایزر آخرین مدل از این سری بوده که تغییرات سخت افزاری عمده ای با نسخه های قدیمی دارد. سرعت و کیفیت نمونه برداری افزایش یافته و برای موارد خاص که نیاز به دقت بالاتری می باشد، می توانید با اعمال کلاک به پایه CLK ، دقت و نرخ نمونه برداری را افزایش دهید.
Introduction

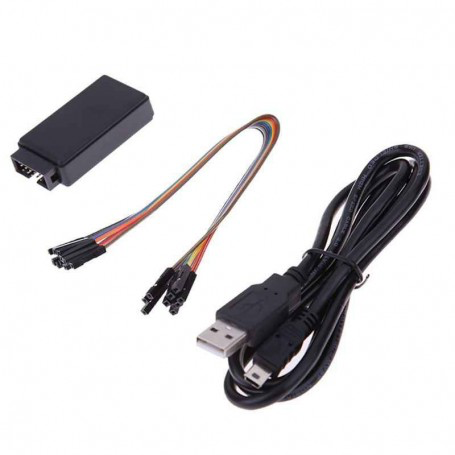

This 8-channel USB Logic Analyzer with support for sampling rates of up to 24MHz provides a good while economic option making it a great tool for quickly diagnosing most communication issues we encounter. These analyzers will work with both 3.3V and 5V systems (up to 5.25V max and 2.0V minimum on a high logic-level) and is powered via an included USB-C cable. This logic analyzer works with Pulse View — an open-source, cross-platform signal analysis software suite. The analyzer ships with Female-To-Female jumper wires. If you’re using an Uno or board with female headers we recommend picking up a handful of Male-To-Male jumpers to connect the analyzer to the female headers.
Hi Letgo USB Logic Analyzer Device With USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz .
The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety of occasions
8-channel
Specification
8-channels
Sampling rate up to 24MHz, configurable down to 20kHz
5.25V maximum voltage input
2.0V minimum logic-high
0.8V maximum logic-low
Input impedance > 100kΩ, 5pF
USB power supply
Supports open-source sigrok logic analyzer software
Cross-platform support: Windows, Mac OS X, Linux, Android, etc.

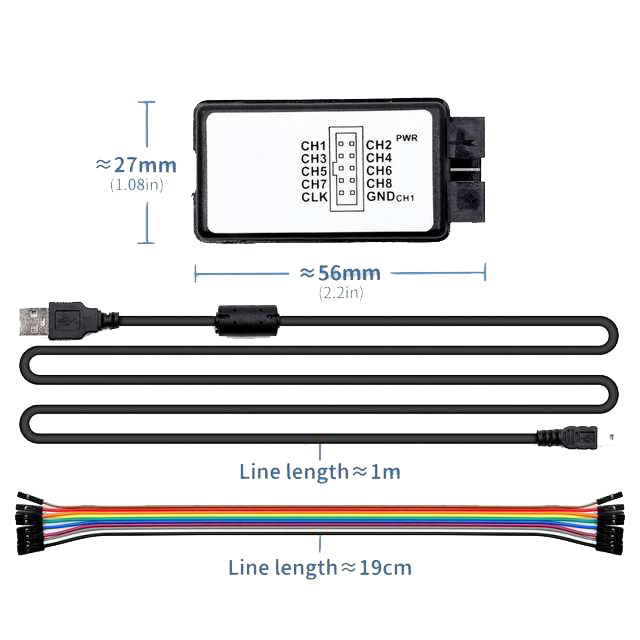

Dimensions: 54.7 x 27.4 x 14.1 mm
