Manufacturer: LTonic
Series: Liming

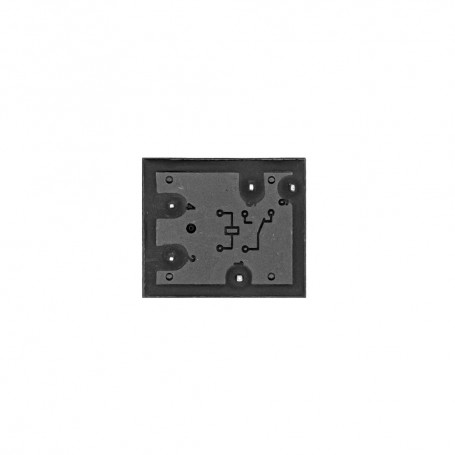

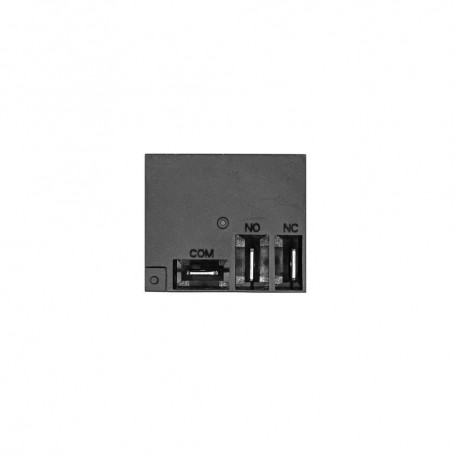

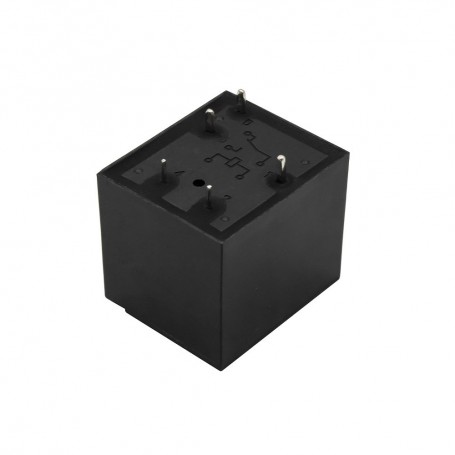

Pin Arrangement: T91

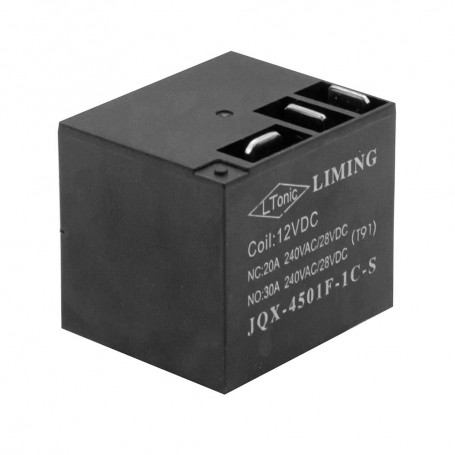

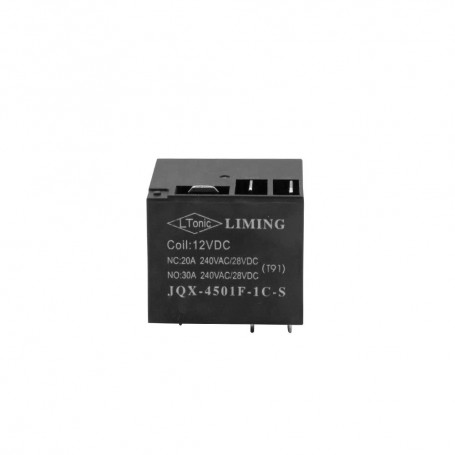

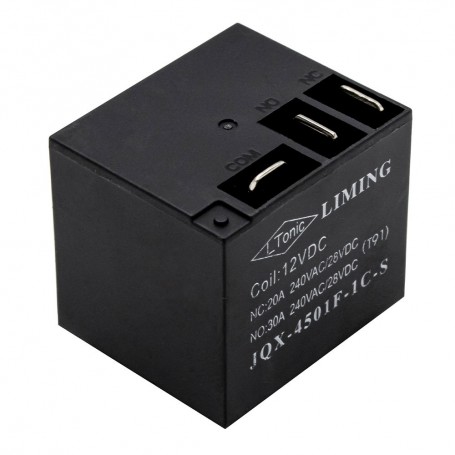

Model: JQX-4501F
Coil Voltage: 12VDC
Coil Resistance: 650ohm
Contact Rating: NC: 20A 240VAC/28VDC
NO: 30A 240VAC/28VDC
electrical endurance of contacts – 100,000 times
dielectric strength between open contacts – 1000 V rms / per 1 min
dielectric strength between coil and contacts – 1500 V rms / per 1 min
operating temperature – from -45°C to + 70°C

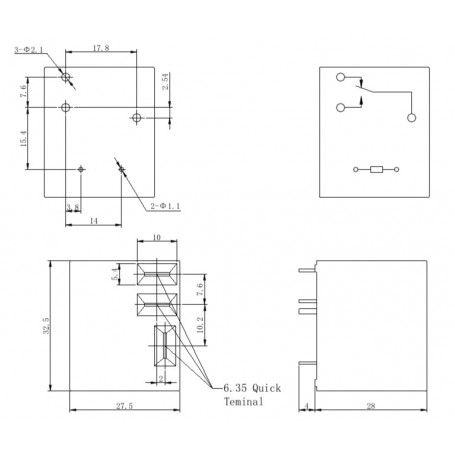

dimensions – 32 x 27 x 28 mm
